SHIPPING
Delivered By Trucking. (7~12 days)
Support local pick up in Edmonton Warehouse.
$300 off for local pick up;
Package size: 72″ * 15″ * 34″;
Package weight: 213lbs.
Accessories included:
1 x Charger;
1 x Tool kit;
1 x Manual;
1 x Front fender;
1 x Rear fender with integrated direction indicator and brake light;
1 x Phone holder with USB port;
2 x Reflective warning strips attached to fork;
A pair of rearview mirrors.
3000W
Motor
torque: 186 NM
46+
Kph
top speed
40Ah
Battery
BMS
80+
Kilometers
throttle level 1

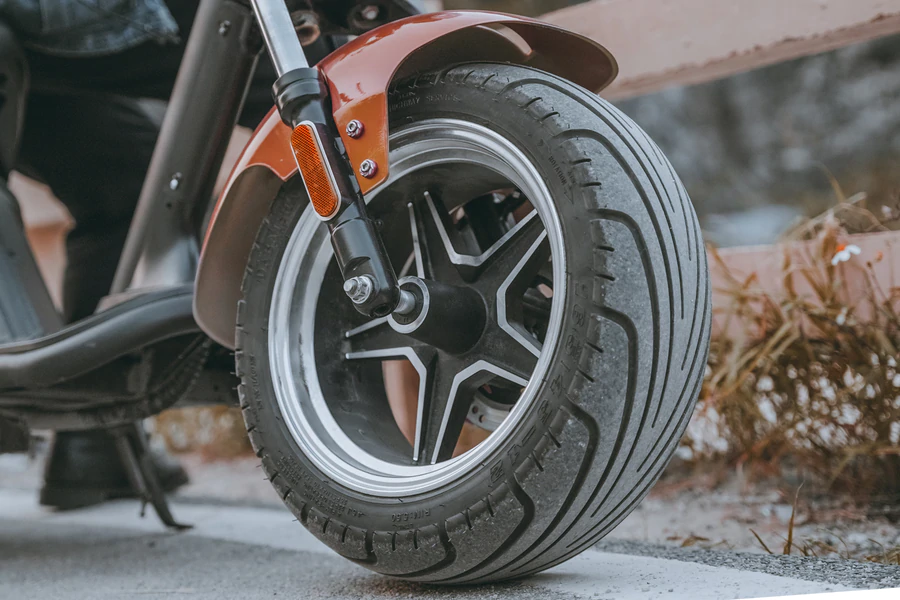

FRONT
Front fork shock for a
smooth ride

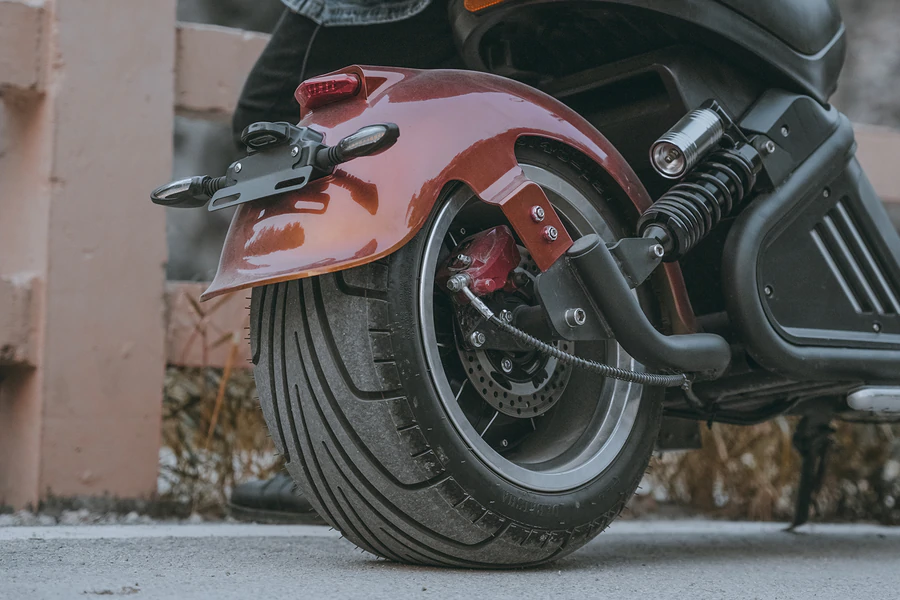

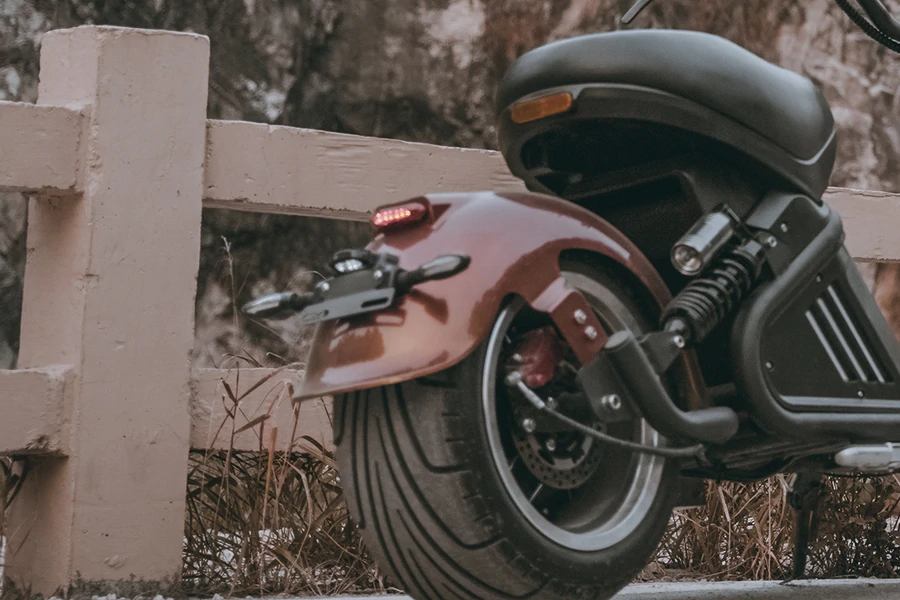

REAR
Double rear absorbers
for extra stability
60V
Headlight
high and low beam
17W
Headlight
turn signal
SCOOTER PARTS DETAILS
TECHNICAL SPECIFICATIONS
ELECTRONICS
Battery | 60V/30AH lithium battery (1800 WH), 45+ miles depends on the speed. |
Controller | 60V/55A Integrated controller |
Motor | 3000W Brushless DC Geared Motor with 186 NM max motor torque, up to 75kPH(max speed). Motor brand: QS motor. |
Throttle | Three levels gear throttle in the default. Speed can be reduced by changing the speed limit setting. |
Charger | 67.2V~5A quick charger, fully charged with 4-6 hours |

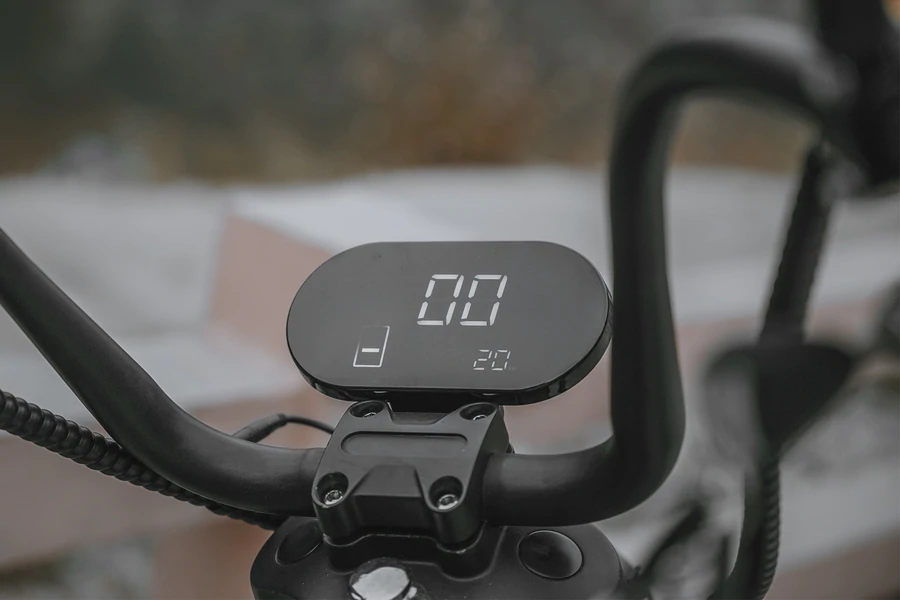

Display | Motor-style LCD with charge indicator, speedometer, odometer, trip odometer, throttle gear level, and more. |
Lights | Front: Oversized headlight with turn light Rear: Integrated taillight on the fender with brake light, direction indicator. |
Kickstand | Electric cut off when putting the kickstand down |
COMPONENTS
Tires | 12″ straight grain vacuum tubeless tires |
Brakes | Front and Rear Hydraulic disc brakes |
Frame | Seamless iron alloy pipe |
Suspension | Front: Hydraulic shock fork Rear: Spring steel shock |
Saddle | Straight grain leather seat |
Footrest | Foldable |
GEOMETRY
Controller Size | 6.8” * 3.7” |
Kickstand Length | 6.7” |
Footrest Size | 4.9” * 5.7” |
Rear Suspension Length | 9.6” |
Brake Hose | Front: 1100mm Rear: 2250mm |
Registration Plate Size | 5.7” * 4.92” |

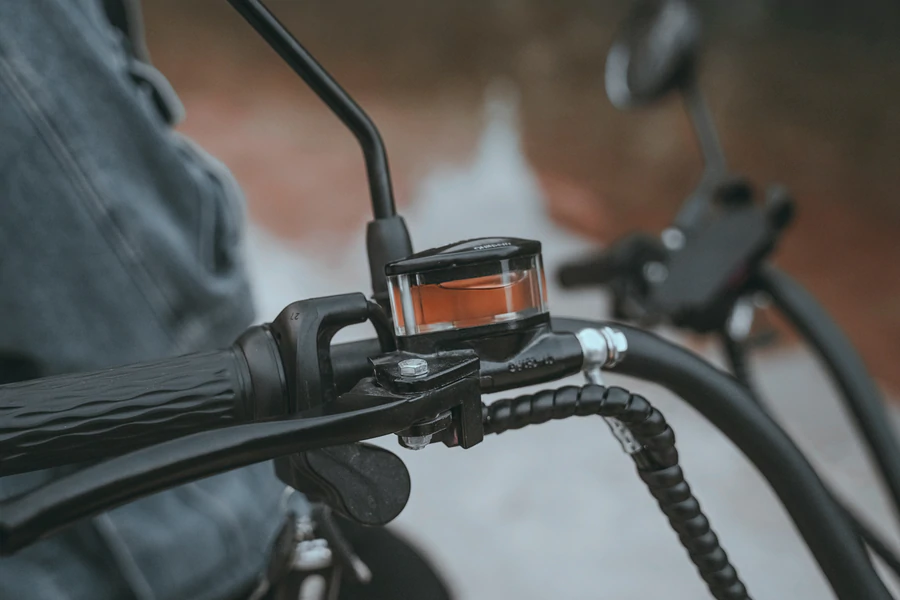

Hydraulic Reservoir | 24ml |
Gradeability | 30° |
Tire Pressure | Front: 225 kPa Rear: 151 kPa(Note: not exceed 225 kPa) |
Weight | Net: 168 lbs Gross: 220 lbs |
Maxload | 440 lbs |
Gallery not found.
YOU MAY ALSO LIKE
$4,450.00
Classic 3 wheel Harley Electric Scooter Strong Loading Long Travel...
Sale!
Original price was: $4,250.00.$3,750.00Current price is: $3,750.00.
EXCELLENT POWERTRAIN 2000W Brushless DC Geared QS motor can produce...
$4,250.00
Time to get a premium golf scooter that speeds up...
Sale!
Original price was: $4,799.00.$4,299.00Current price is: $4,299.00.

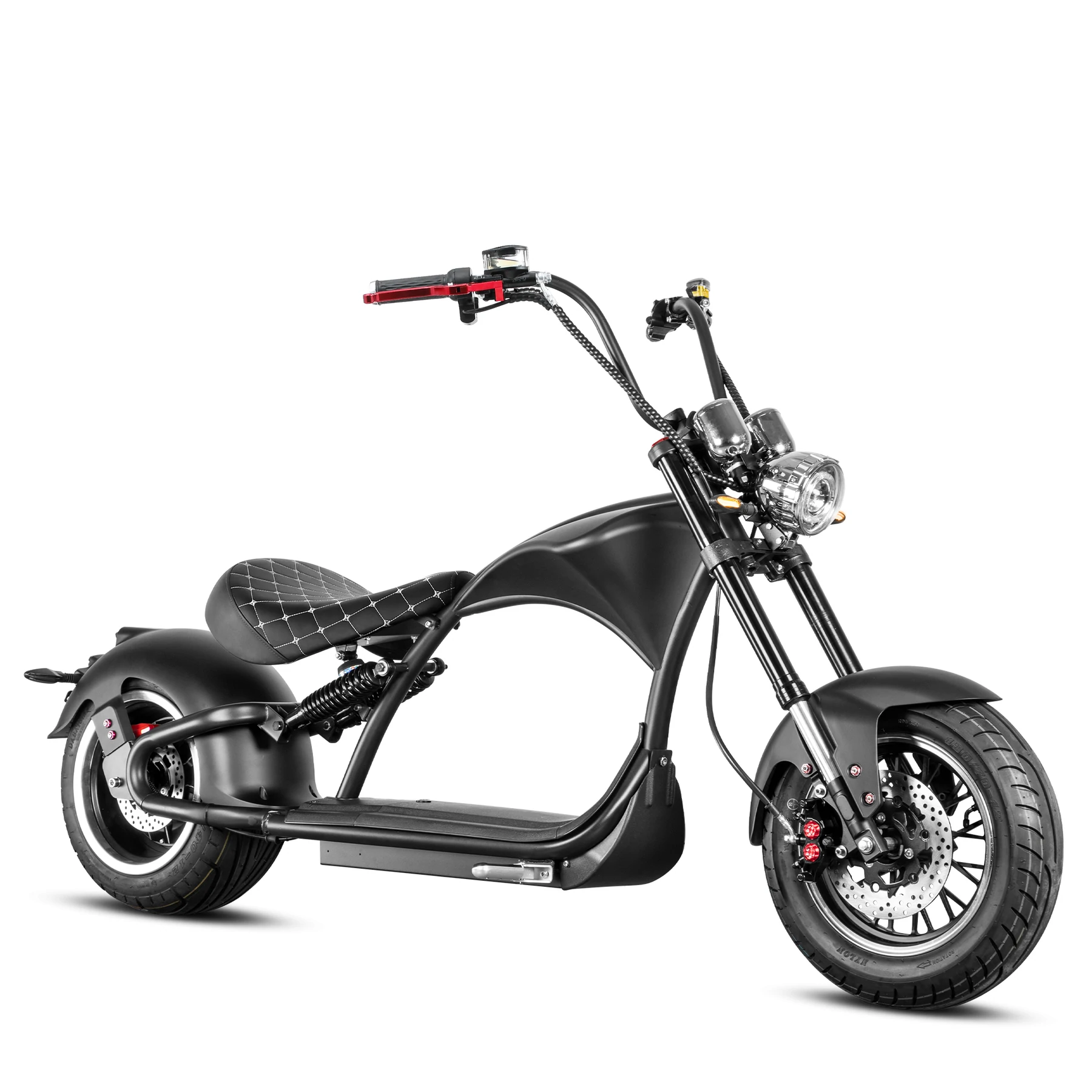

M1-3000 is our most powerful chopper with power to spare...
